Detections the floor can see and hear.
Sentinel Beacon turns Intenseye detections into instant, floor-level signals. A five-tier LED signal tower with an integrated buzzer so the moment a hazard is spotted, the right people see it and hear it.
Signals that reach the floor first.
Turn detections into floor-level signals
When Intenseye spots a hazard, the platform drives Beacon over the network - tier color, pattern, and buzzer sound matched to the event.
Seen and heard over the noise
Five stackable tiers with 9 colors - up to 21 in Smart Mode - and a ≥85 dB buzzer with 11 tones cut through plant noise.
One cable, anywhere on the network
PoE carries power and data on a single RJ-45 run - place Beacon at the line, the aisle, or the door where crews actually look.
- Signal tower & LED
- 9 colors · up to 21 in Smart Mode
- Continuous, flashing, or lights-off per tier - 11 display patterns at 30, 60, or 120 flashes per minute.
- Integrated buzzer
- ≥85 dB · 11 sounds
- Continuous, intermittent, and multiplexed tones from 2,400 to 4,800 Hz - heard across the floor.
- Power & PoE
- IEEE 802.3af Class 0 · 24 VDC
- One RJ-45 cable carries power and data - 8.6 W typical on PoE, 12.5 W max.
- Connectivity
- Ethernet 10/100
- RJ-45 network, micro-B USB, and a screwless terminal block with 8 contact inputs.
- Control & command
- Modbus/TCP · HTTP · PNS / PHN
- In the Intenseye deployment, Beacon is driven over the network - the platform maps detections to tier color, pattern, and buzzer sound, so escalation on the floor is automatic.
- Environment
- IP20 · −10–50°C · indoor
- Mounts upright on a stable surface, or on the wall with the NH-WST2 bracket.

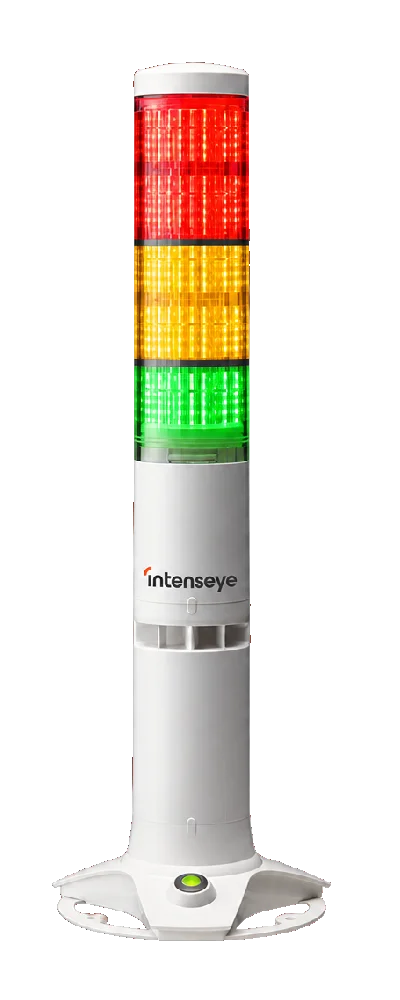

A signal tower the whole floor reads.
An off-white ABS tower with five stackable LED tiers and a buzzer in the body - upright on its base or on the NH-WST2 wall bracket, with one PoE cable in through the base.
Signals, driven by the whole network.
Beacon connects through the Sentinel Hub, alongside Sentinel cameras and supported CCTV. When any device detects a hazard, the platform maps it to a tier color, pattern, and buzzer sound - escalation on the floor is automatic.
When it happens, the floor knows.
Detections from anywhere in the network drive Beacon’s tiers and buzzer - four moments where a floor-level signal changes the outcome.

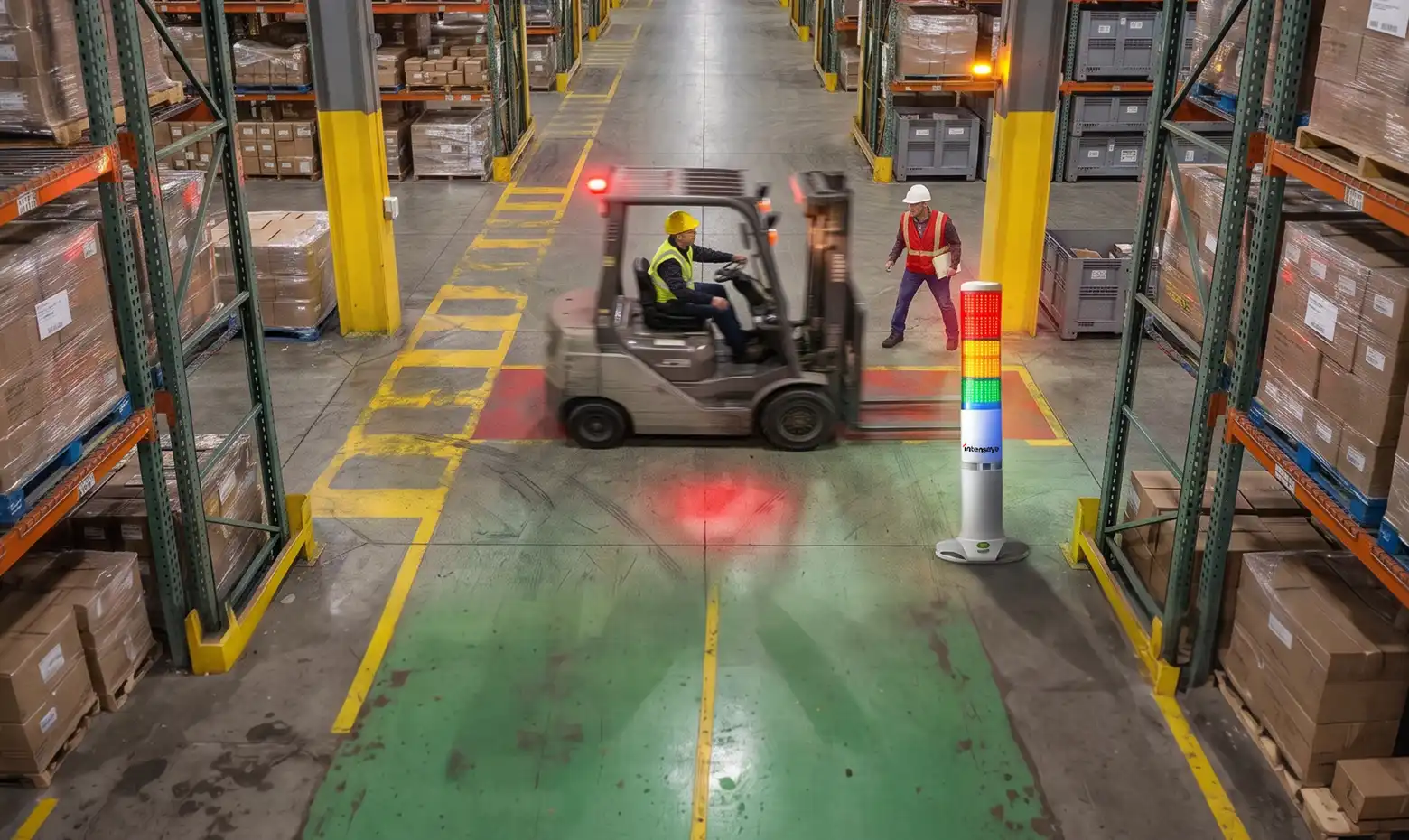

ANONYMIZED · NO FACIAL RECOGNITIONRed tier at the dock door.
A near-miss in the aisle drives the red tier and an intermittent tone at the crossing - the driver and the pedestrian both know, instantly.
Beacon connects through the Sentinel Hub.
